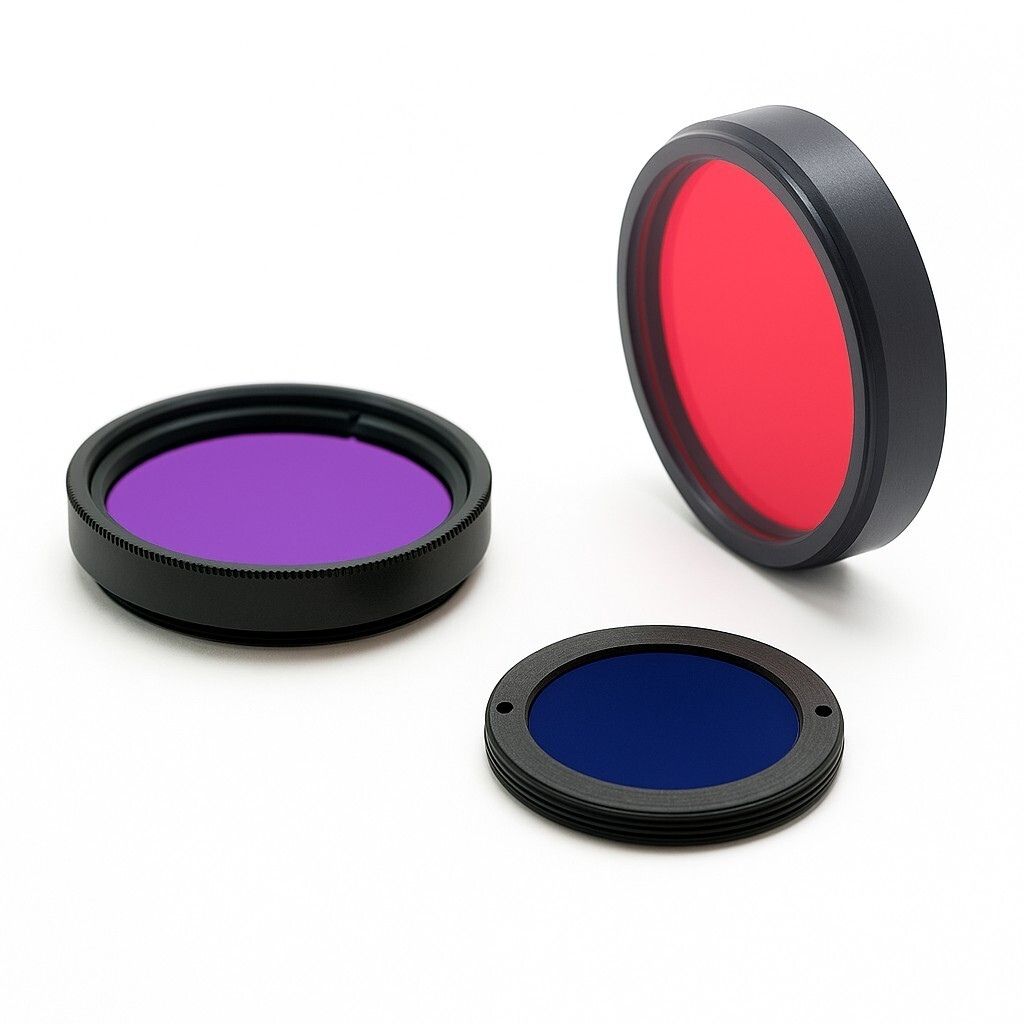

Visible Bandpass Filters On JNS Glass & Coatings

Catalog

1 - 29 of 29 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #		Item Name	Useful Range	Tolerance (±)	Peak Transmission	Transmission Chart

BP450	N/A ⬤	N/A Indigo Bandpass Filter	N/A 425 to 470 nm	N/A 10 nm	N/A ≥90 %	BP450
BN450	N/A ⬤	N/A Narrow Indigo Bandpass Filter	N/A 435 to 465 nm	N/A 7 nm	N/A ≥90 %	BN450
Bi450	N/A ⬤	N/A Blue Interference Filter	N/A 445 to 465 nm	N/A 5 nm	N/A ≥88 %	BI450
BP470	N/A ⬤	N/A Blue Bandpass Filter	N/A 425 to 495 nm	N/A 10 nm	N/A ≥90 %	BP470
BN470	N/A ⬤	N/A Narrow Blue Bandpass Filter	N/A 460 to 490 nm	N/A 7 nm	N/A ≥85 %
BP485	N/A ⬤	N/A Absorptive Visible Bandpass Filter	N/A 380 to 585 nm	N/A 10 nm	N/A ≥90 %	BP485
BN485	N/A ⬤	N/A Narrow Blue Bandpass Filter	N/A 480 to 490 nm	N/A 7 nm	N/A ≥85 %	BN485
BN490	N/A ⬤	N/A Narrow Green-Blue Bandpass Filter	N/A 475 to 500 nm	N/A 7 nm	N/A ≥90 %	BN490
BP500	N/A ⬤	N/A Green-Blue Bandpass Filter	N/A 440 to 555 nm	N/A 10 nm	N/A ≥85 %	BP500

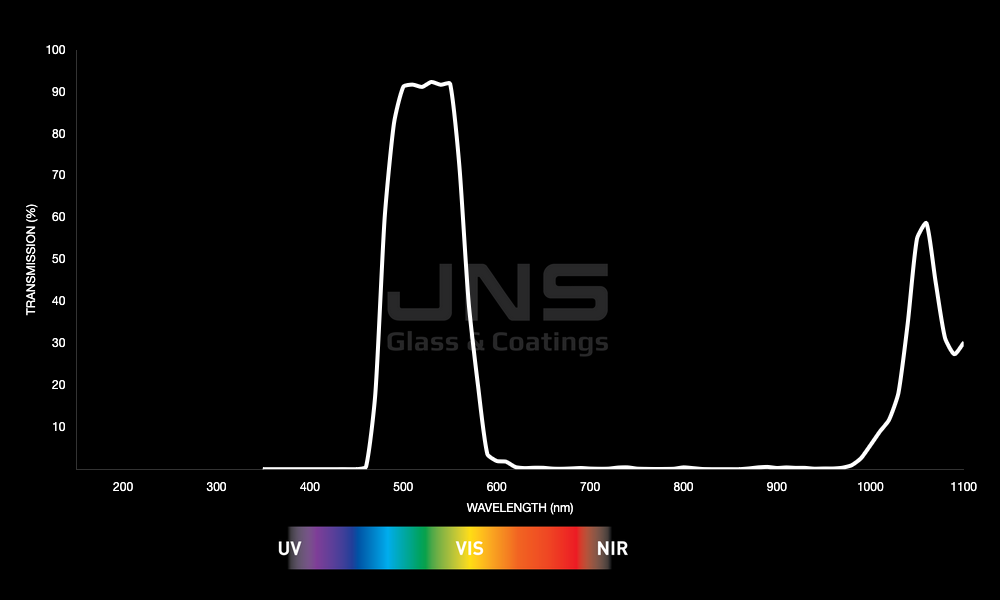

BP505	N/A ⬤	N/A Cyan Bandpass Filter	N/A 485 to 550 nm	N/A 10 nm	N/A ≥90 %	BP505

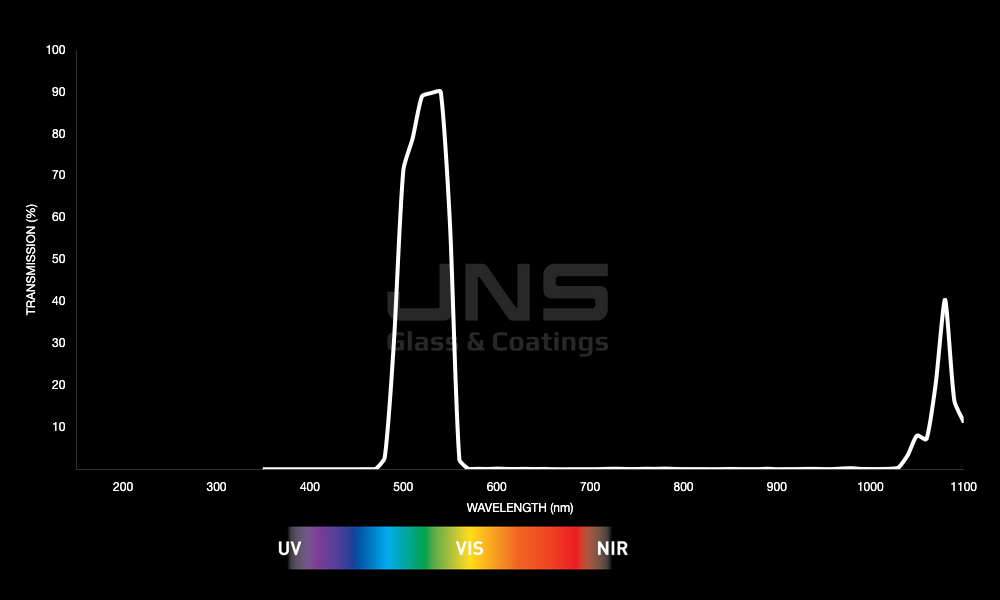

BN520	N/A ⬤	N/A Narrow Green Bandpass Filter	N/A 510 to 545 nm	N/A 7 nm	N/A ≥85 %	BN520
Bi520	N/A ⬤	N/A Light Green Interference Bandpass Filter	N/A 515 to 525 nm	N/A 5 nm	N/A ≥88 %	BI520
BP525	N/A ⬤	N/A Light Green Bandpass Filter	N/A 500 to 555 nm	N/A 10 nm	N/A ≥90 %	BP525
Bi525	N/A ⬤	N/A Light Green Interference Bandpass Filter	N/A 518 to 538 nm	N/A 5 nm	N/A ≥90 %	BI525

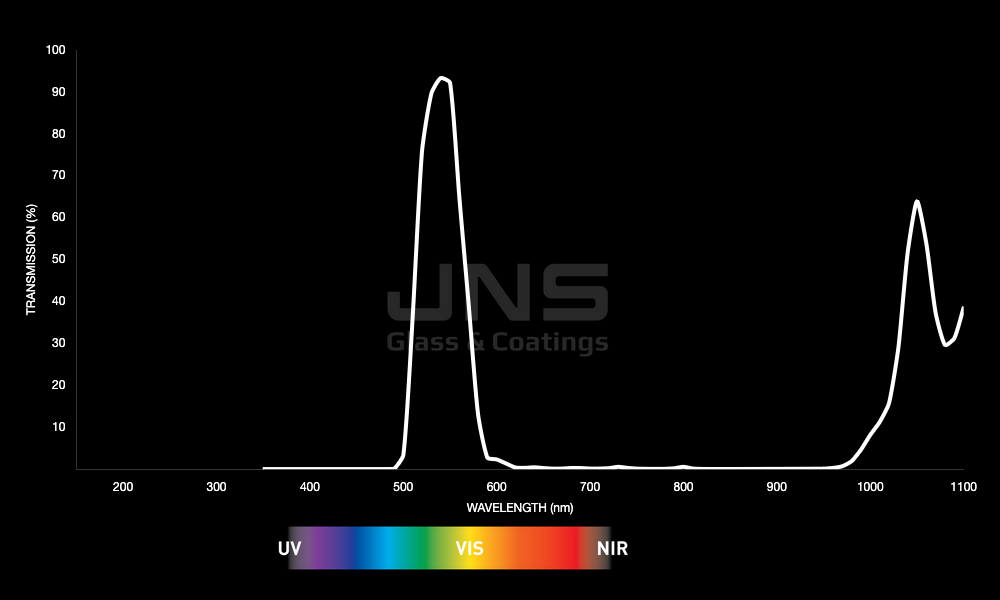

BN532	N/A ⬤	N/A Narrow Green Bandpass Filter	N/A 525 to 550 nm	N/A 7 nm	N/A ≥85 %	BN532
BN535	N/A ⬤	N/A Narrow Green Bandpass Filter	N/A 520 to 545 nm	N/A 7 nm	N/A ≥85 %	BN535
BP550	N/A ⬤	N/A Near-IR/UV Block Bandpass Filter	N/A 405 to 690 nm	N/A 10 nm	N/A ≥90 %	BP550
Bi550	N/A ⬤	N/A Green Interference Bandpass Filter	N/A 535 to 558 nm	N/A 5 nm	N/A ≥88 %	BI550
BP590	N/A ⬤	N/A Orange Bandpass Filter	N/A 560 to 600 nm	N/A 10 nm	N/A ≥90 %	BP590
BN595	N/A ⬤	N/A Narrow Orange Bandpass Filter	N/A 580 to 610 nm	N/A 7 nm	N/A ≥85 %	BN595
Bi615	N/A ⬤	N/A Amber Interference Bandpass Filter	N/A 605 to 620 nm	N/A 5 nm	N/A >90 %	BI615
BN630	N/A ⬤	N/A Narrow Light Red Bandpass Filter	N/A 625 to 645 nm	N/A 7 nm	N/A ≥85 %	BN630
Bi632	N/A ⬤	N/A Light Red Interference Bandpass Filter	N/A 625 to 640 nm	N/A 5 nm	N/A ≥88 %	BI632
BP635	N/A ⬤	N/A Light Red Bandpass Filter	N/A 615 to 645 nm	N/A 10 nm	N/A ≥90 %	BP635

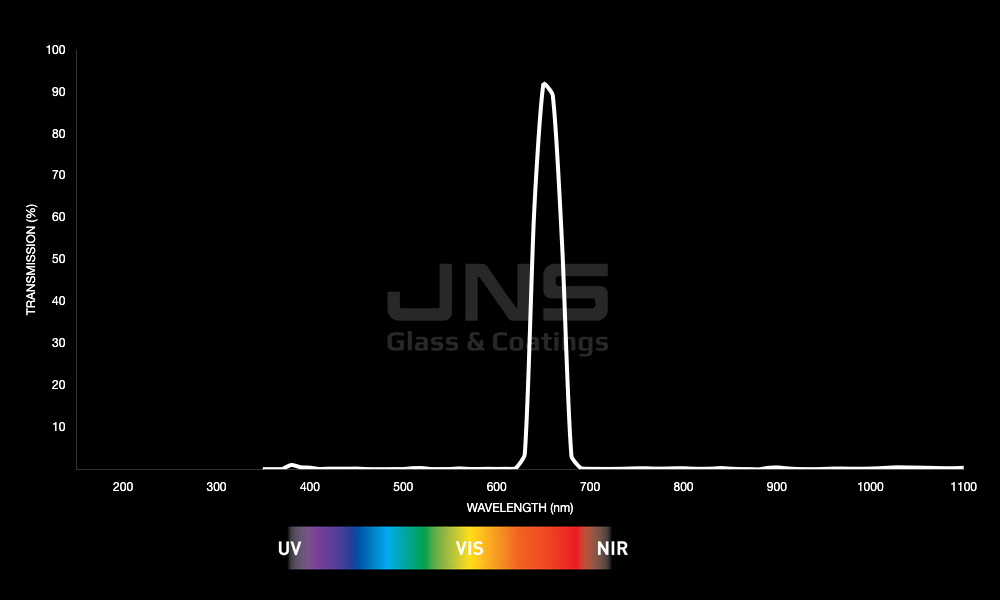

Bi650	N/A ⬤	N/A Red Interference Bandpass Filter	N/A 643 to 665 nm	N/A 5 nm	N/A ≥85 %	BI650
BP660	N/A ⬤	N/A Dark Red Bandpass Filter	N/A 640 to 680 nm	N/A 10 nm	N/A ≥90 %	BP660
BN660	N/A ⬤	N/A Narrow Dark Red Bandpass Filter	N/A 645 to 675 nm	N/A 7 nm	N/A ≥85 %	BN660

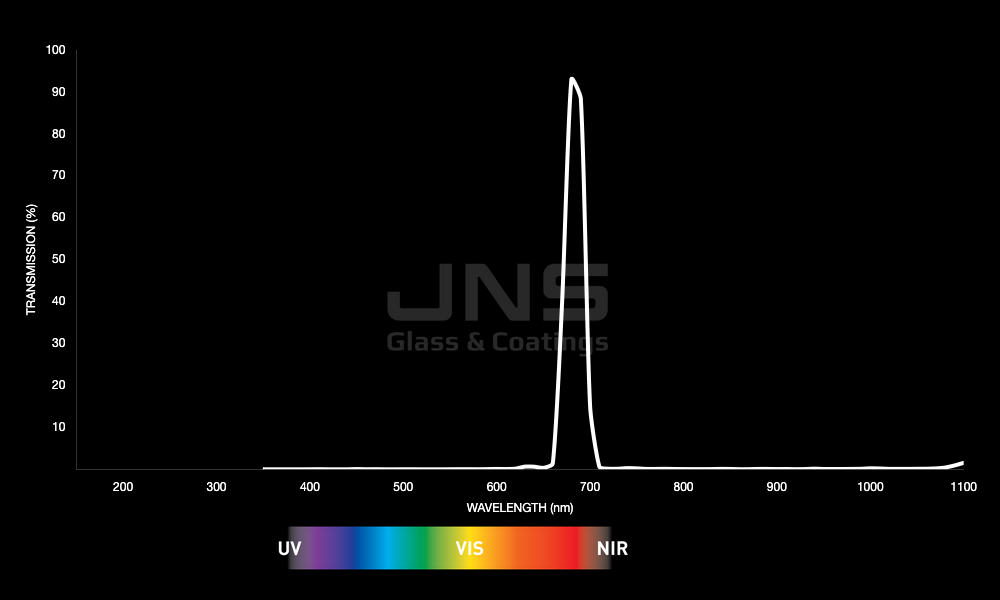

Bi685	N/A ⬤	N/A Dark Red Interference Bandpass Filter	N/A 675 to 692 nm	N/A 5 nm	N/A ≥85 %	BI685
Bi725	N/A ⬤	N/A Red Edge Bandpass Filter	N/A 717 to 732 nm	N/A 5 nm	N/A ≥90 %	BI725
